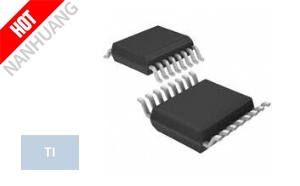

ISO7820DWR Images
- Manufacturer: Texas Instruments (TI)
- Category: Isolators~Digital Isolators Package/Case: 16-SOIC (0.295, 7.50mm Width)
- Description: DGTL ISO 5700VRMS 2CH GP 16SOIC
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
ISO7820DWR Specifications:
- MfrPart.: ISO7820DWR
- Mfr: Texas Instruments
- Description: DGTL ISO 5700VRMS 2CH GP 16SOIC
- Product Category: Isolators~Digital Isolators
- Package: Tape & Reel (TR)
- Series: -
- PartStatus: Active
- Technology: Capacitive Coupling
- Type: General Purpose
- IsolatedPower: No
- NumberofChannels: 2
- Inputs-Side1/Side2: 2/0
- ChannelType: Unidirectional
- Voltage-Isolation: 5700Vrms
- CommonModeTransientImmunity(Min): 100kV/µs
- DataRate: 100Mbps
- PropagationDelaytpLH/tpHL(Max): 16ns, 16ns
- PulseWidthDistortion(Max): 4.6ns
- Rise/FallTime(Typ): 2.4ns, 2.4ns
- Voltage-Supply: 2.25V ~ 5.5V
- OperatingTemperature: -55°C ~ 125°C
- MountingType: Surface Mount
- Package/Case: 16-SOIC (0.295, 7.50mm Width)
- ISO7820DWR TI, DGTL ISO 5700VRMS 2CH GP 16SOIC, Isolators~Digital Isolators
ISO7820DWR, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
