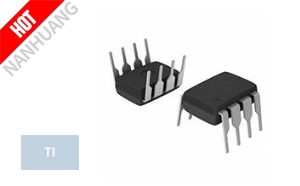

6N137 Images
- Manufacturer: Texas Instruments (TI)
- Category: Isolators~Optoisolators - Logic Output Package/Case: 8-DIP (0.300, 7.62mm)
- Description: LOGIC IC OUTPUT OPTOCOUPLER
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
6N137 Specifications:
- MfrPart.: 6N137
- Mfr: Texas Instruments
- Description: LOGIC IC OUTPUT OPTOCOUPLER
- Product Category: Isolators~Optoisolators - Logic Output
- Package: Bulk
- Series: -
- PartStatus: Active
- NumberofChannels: 1
- Inputs-Side1/Side2: 1/0
- Voltage-Isolation: 5300Vrms
- CommonModeTransientImmunity(Min): 1kV/µs
- InputType: DC
- OutputType: Open Drain
- Current-Output/Channel: 50 mA
- DataRate: 10MBd
- PropagationDelaytpLH/tpHL(Max): 75ns, 75ns
- Rise/FallTime(Typ): 23ns, 7ns
- Voltage-Forward(Vf)(Typ): 1.4V
- Current-DCForward(If)(Max): 20mA
- Voltage-Supply: 4.5V ~ 5.5V
- OperatingTemperature: -40°C ~ 100°C
- MountingType: Through Hole
- Package/Case: 8-DIP (0.300, 7.62mm)
- 6N137 TI, LOGIC IC OUTPUT OPTOCOUPLER, Isolators~Optoisolators - Logic Output
6N137, TI authentic parts in stock from TI authorized distributors, order today, can ship immediately.
